PROBING SOLUTION – Your partner in probing solution Since 1991

Your partner in probing solution Since 1991 EverBeing (EB), a probe station manufacturer, provides you with a complete and broad range of probing hardware from A to Z. We are proud to be your one-stop shopping for probing solutions. Our inventories are one of the largest for probing tips, tip holders, extension cables, triaxial/RF heads/adapters, micropositioners, and microscopes. We also have complete probe stations, as well as semi-finished parts in stock. As soon as we have received your order, we will configure and assemble in a short time. Do not waste your time thinking about your probing hardware. Our seventeen-year experienced consultants could materialize your idea in a cost-efficient manner. If you are unable to find the proper items from our standard product line, we will gladly tailor to your specific needs. In addition, we offer upgrades and services for existing probe stations of any brand and model.

Product Line

Wafer Probe Station, LCD Probe Station, LED Probe Station, LD/PD Probe Station, PCB Probe Station, FPC Probe Station, Design House Probe Station, Micropositioner (Micromanipulator), Microscope, Laser Cutter, Hot Chuck, Cold Chuck, Cryogenics Chuck, Four Point Probe, Vibration Free Table, Vibration Free Tabletop, Shielding Box, Probing Accessories-Tip holder, Tip, Extension Cable, Adapter etc.

Wafer Probing Systems

Features
Coaxial-Driven Chuck Stage
RF Probing Field Upgradable
20X~4000X Magnification
Backlash-Free Movement
Platen Linear Quick Up/Down
Easy Load/Unload wafer
Platen Linear Fine Up/Down
Probe Card Tip Overdrive Adjustment
Specifications
Vacuum Chuck 6″ Stainless Steel
Chuck Stage 6″ x6″ Travel
Chuck Theta 0~30 degree
Platen Up/Down
Coarse Adjustment 6mm Adjustable
Lever-Driven
Platen Up/Down
Fine Adjustment 25 mm Adjustable
Hand Wheel-Driven
Platen 12 Micropositioner
Microscope Stage 1″ x1″ Travel
Features
Coaxial-Driven Chuck Stage
RF Probing Field Upgradable
20X~4000X Magnification
Backlash-Free Movement
Choice Of Microscope (Tilt) Up/Down
For E-Z Revolving Objevtives
Specifications
Vacuum Chuck 6″ Stainless Steel
Chuck Stage 6″ x6″ Travel
Chuck Theta 0~30 degree
Platen Up/Down 4mm Adjustable
Platen 12 Micropositioner
Microscope Stage 1″ x1″ Travel
Features
Compact Size
Light Weight
Price Affordable
Electro-Optics Application
Light Intensity / Wave Length
Measurement for LED / LD / PD
RF Probing East / West
University Lab. Suitable
Ideal for small wafer less than 4″
Side-Driven Chuck Stage
Backlash-Free Movement
Specifications
Vacuum Chuck 4″ Stainless Steel
Chuck Stage 3″ x3″ Travel
Chuck Theta 0~30 degree
Platen 6 Micropositioner

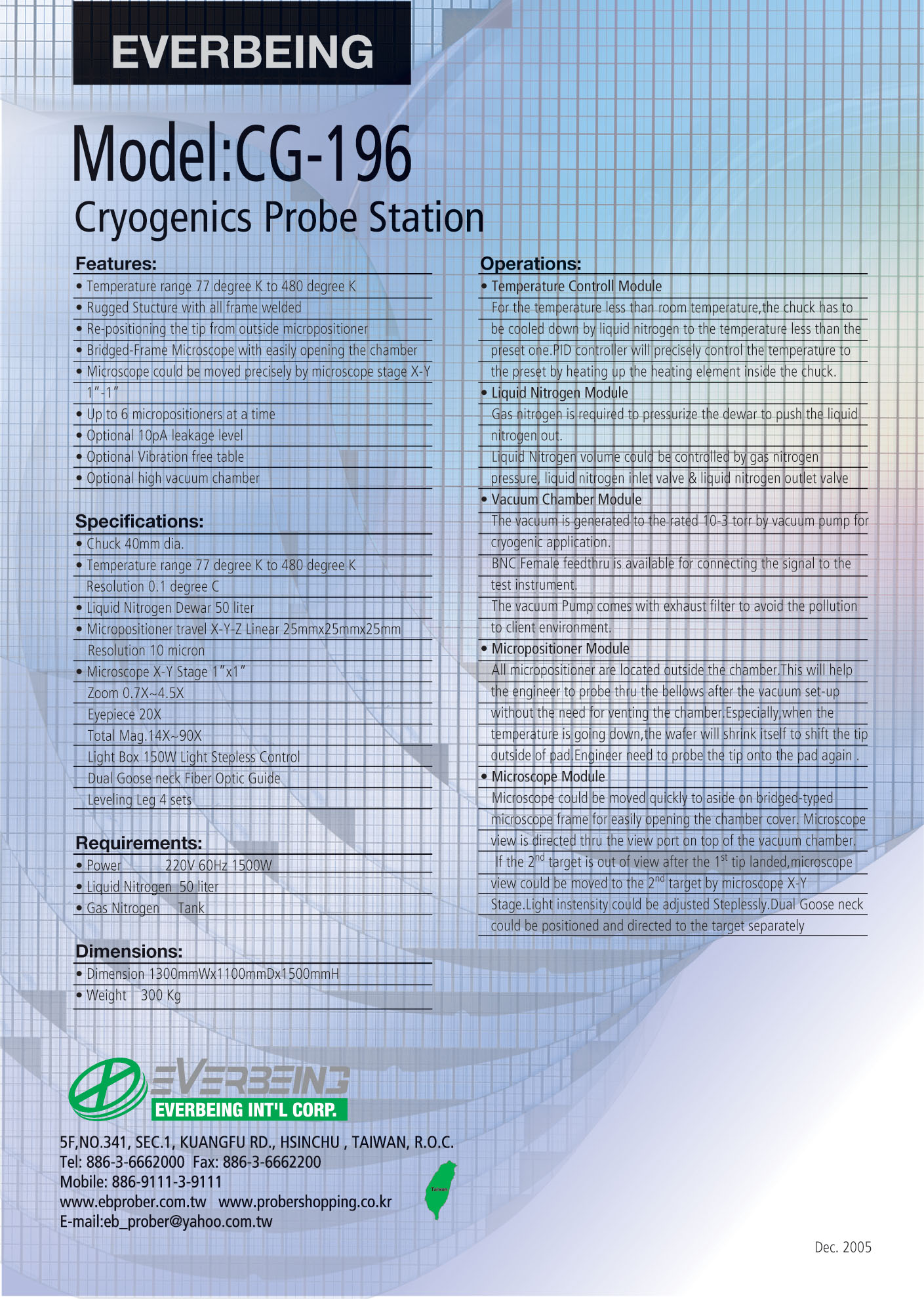

Cyrogenics Probing

CG-196-back
Sheet Resistivity Probing

Features
True Vertical Up / Down
Individually Contant Spring Loaded Pin
Constant Pin Spacing
Ultimate Repeatability
Probe Head E-Z Changeover
Probing Z Position Adjustable On Top
Sturdy Feedthru Panel At Rear Side
Feedthru Choice Banana / BNC/ Triaxial Female
Chuck Quick Move Available
Hot Chuck Available
Shielding Box Available
4″ , 6″ , 8″ Dia. Choice
Others-Made Probe Head Available
Specifications
Chuck 4″, 6″, 8″ dia. Teflon
Head Up/Down 10mm
Probing Z Resolution 1 Micron
Probe Pin Material Tungsten Carbide
Probe Pin Spacing 40 mil, 50 mil, 62.5 mil
Probe Pin spring 45grams, 85grams, 180grams
Probe Pin Radius 40.6 Micron
Micropositioners

Features
Budget Affordable
Linear Motion
I/O Pad Probing
Electro-Optics Probing
Space Saving
Choice of Triaxial / Coaxial Tip Holder

Specifications
X-Y-Z  12mm x 12mm x 12mm
Linear motion
Lead Screw  40 TPI Thread/Inch
Resolution  1.7 Micron

Accessories
Triaxial Tip Holder
Coaxial Tip Holder
Magnet, Vacuum Based
Soft Probing Tilting Mechanism
Active Probes
Ultrasonic Cutter
Low Current / Capacitance Probes
High Voltage Probes
Features
Linear Motion
I/O Pad Probing
Circuit Probing
RF Probing
Space Saving, In-Line X-Y Knob
Choice of Traxial / Coaxial Tip Holder

Specifications
X-Y-Z  12mm x 12mm x 12mm
Linear Motion
Lead Screw  80 TPI Thread/Inch
Resolution  0.8 Micron

Accessories
Triaxial Tip Holder
Coaxial Tip Holder
Magner, Vacuum Based
Soft Probing Tilting Mechanism
Active Probes
RF Probes
Ultrasonic Cutter
Low Current / Capacitance Probes
High Voltage Probes
Features
Sub-micron Internal Circuit Probing
Linear Motion
Choice Of Triaxial / Coaxial Tip Holder
Four-Sided RF Probe Positioner
East / West / South / North
DC to 40GHz ~ 120GHz
Multi Contact Wedge DC to 40GHz or 67Ghz
Calibration Substrate With Software
45 Degree Cable Connection
No Need for Elbow Connector
30 Degree E-Z Probing Inclination
Repairable Probe Head
Tungsten Tip Available
Positioner With Cable Holder
Backlash-Free Movement

Specifications
X-Y-Z 12mm x 12mm x 12mm
Linear Motion
Lead Screw 200 TPI Thread/Inch
Resolution 0.35 Micron

Accessories
Triaxial Tip Holder
Coaxial Tip Holder
Magner, Vacuum & Locking Screw Based
Soft Probing Tilting Mechanism
RF Theta Mechanism
Semi-Rigid Cables
Active Probes
Ultrasonic Cutter
Low Current / Capacitance Probes
High Voltage Probes

Tip Holders

Definition
The tip holder is the mechanism between
the micropositioner & the probing tip. As the people know it is the mechanism for holding the prbing tip.As a result, the tip and tip holder will be driven at the same time by the the micropositioner X-Y-Z knobs.

1. Mechanism Aspact
a.Screw-typed:
Use the tiny screw in a threaded hole to hold the probing tip which is located 45 degree. It is simplest and cheapest. You can choose regular,coaxial & triaxial

b.Spring-typed:
Use the loaded spring to hold the probing
tip.When you hold the spring-loaded pusher back,the tip hole will appear. When you release the spring-loaded pusher,the pusher will push to hold the tip itself. You can choose regular,coaxial & triaxial.

c.Tubular type:
Use the copper tube to hold the probing tip and again use the copper tube to make the electrical shielding.There is the insulation tube put in the between the tip holding tube and shielding tube. You can choose coaxial & triaxial.It is not recommended to use on the micropositioner EB-700.

2. Electrical Aspact
a. Regular Tip holder:
The electrical signal from the tip go all the way the tip holder body.Then the signal go  thru the PVC cable. This can measure the current level around the mA. This current level is typical for LED,LD,PD ,OLED and some LCD. You can choose screw,spring and tubular types.

b.Coaxial Tip Holder:
It comes with a coaxial cable 1.2 meter long terminated with BNC male(also called coaxial male).This can measure the current level less than 10 pA with qualified shielding box. You can choose screw,spring and tubular types.

c.Triaxial Tip Holder:
It comes with a triaxial cable 1.2 meter long terminated with triaxial male. This can measure the current level less than 100 fA with qualified shielding box. You can choose screw, spring and tubular types.
