Model UH114 Series: (UH114, UH114-8, UH114-12)
Mounter_UH114-8 Mounter_UH114-8_Chuck

Ultron Systems’ Model UH114 & UH115 Series Mounters set the benchmark for both control and versatility. For dicing/sawing applications, uniform adhesive plastic film lamination is paramount. Our mounters feature an easily adjustable spring-loaded roller assembly, along with film-tensioner bars along both the x- and y-axes to ensure bubble-free lamination of the film to the wafer and film frame. In addition, both models feature a retractable film cutting system with adjustable cutting pressure to accommodate various tape base materials and thicknesses. Roller pressure is adjusted from the topside of the units for different process requirements and to accommodate various wafer thicknesses. A digital temperature controller ensures consistent workstage temperatures for repeatable mounting. Adjustable alignment pins and vacuum cups accommodate almost any type of film frame, including plastic. The workstage height is also adjustable relative to the frame height for different wafer thicknesses. Using our Mounters, operator variables are virtually eliminated.


Model UH115 Series: (UH115, UH115-8, UH115-12)

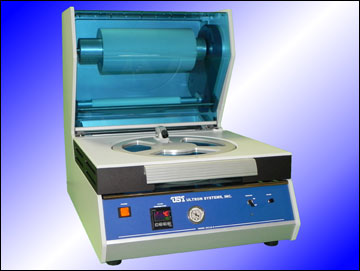

Mounter_UH115 Mounter_UH115_Chuck

 Based on the highly successful Model UH114 Series Wafer/Frame Film Applicators, the Model UH115 represents the next level of bubble-free film lamination to all sizes of wafers and types of film frames. The Model UH115 Series Mounters feature a semiautomatic one-pass lamination which provides an extra margin of safety when mounting particularly fragile wafers/substrates. Most manual mounters laminate the film in two passes, i.e., one pass as the film is laminated to the film frame and wafer/substrate, and a second relaminating pass as the roller returns to its home position. The Model UH115 Series, however, laminates on the first pass only; the second pass is contact-free. Additionally, the film unwinds along a new roller path so that “crease lines” — which are common to most film mounters and occur at the point the unwound film meets the film roll — are eliminated from the lamination area. Adjustable circle cutting pressure accommodates adhesive plastic film of various thicknesses.


Features of UH114 and UH115 Series

Our mounters are available in 6″, 8″, and 12″ wafer / film frame models and features:

FEATURES UH114 SERIES UH115 SERIES
– Easily adjustable spring-loaded roller assembly
X
X
– Uniform film tension: Film tensioner bars
X
X
– Automatic motor-driven, one-pass uniform film lamination X
– Three modes of laminating roller operation: fast, slow, or momentary X
– Uniform adhesion provides bubble-free lamination
X
X
– Circular cutter (wheel-type) for cutting film on film frame
X
X
– Adjustable cutting pressure for different films (thickness/hardness)
X
X
– Adjustable motorized roller speed and pressure X
– Digital temperature controlled platen
X
X
– Adjustable workstage height from top of unit
X
X
– Operates with non-backed or backed (optional) film
X
X
– Accommodates film/protective layer wound on the outside or inside
X
X
– Adjustable alignment pins and vacuum cups
X
X
– Accepts all film frames (specify type and size)
X
X
– End cutter for film separation
X
X
– Accommodates wafers up to 6″ capability (UH114, UH115); wafers up to 8″ capability (UH114-8, UH115-8); wafers up to 12″ capability (UH114-12, UH115-12)
X
X
– SofTouch (Edge-contact) Workstage OPTION
– Protective Film Take-up Roller Assembly for use with film with backing layer
OPTION
OPTION
– Static Eliminator (with or without) Power Safety Interlock Switch
OPTION
OPTION
– Film Frame Adapter Ring: 8″<=>6″ (UH114-8, UH115-8), 12″<=>8″ (UH114-12, UH115-12)
OPTION
OPTION
– Vacuum-Securing Standard Wafer Stage
OPTION
OPTION
– Magnetic Main Plate Assembly
OPTION
OPTION
– Thin Wafer Stage
OPTION
OPTION
– ‘CE’ Mark
OPTION
OPTION
