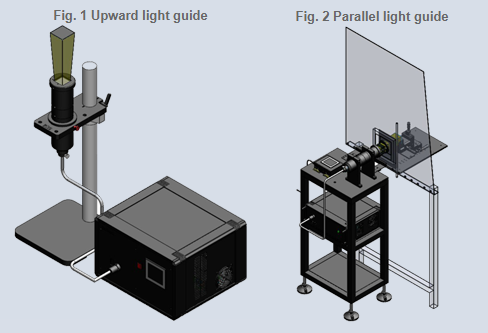

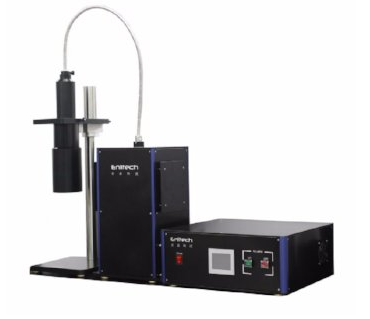

Class AAA  Steady-State Solar Simulators are designed in accordance with the standards of IEC 60904-9 and ASTM E927 to measure the efficiency for solar cells, of which the output beam size’s are 50 x 50, 70 x 70, 100 x 100 and 160 x 160 mm2. The optical fiber light guide enables the flexible illumination and also can be integrated into a glove box, which can exactly match your research needs.

Beam Size: 50mm x 50mm
Item No. : SS-F5-3A

>> Daha fazla bilgi için tıklayınız.

Beam Size: 70mm x 70mm
Item No. : SS-F7-3A

>> Daha fazla bilgi için tıklayınız.

Beam Size: 100mm x 100mm
Item No. : SS-C10-3A

>> Daha fazla bilgi için tıklayınız.

Beam Size: 160mm x 160mm
Item No. : SS-T6i-3A

>> Daha fazla bilgi için tıklayınız.

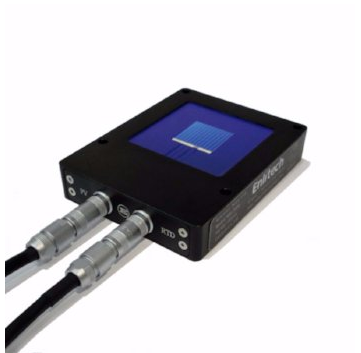

Product Name: Reference Cell

Item No: SRC-2020


SRC-2020 series solar reference cell is used for adjusting the intensity of solar simulator and measuring the characterization of I-V. Enlitech uses unique optical filter technology to substantially reduce the spectral mismatch. With the standard 20 mm x 20 mm Si solar cell and unique optical filters, it can be applicable to different type of solar cell measurement by choosing the proper model.

>> Daha fazla bilgi için tıklayınız.

Each Enli Tech’s reference cell has NREL-traceable or ISE-traceable calibration reportwhich is accredited by ISO-17025. We also provide the reference cell re-calibration service and  PTB Primary Reference calibration service according to IEC 60904-4international standard. Please contact us now!

Daha fazla bilgi için lütfen tıklayınız.
